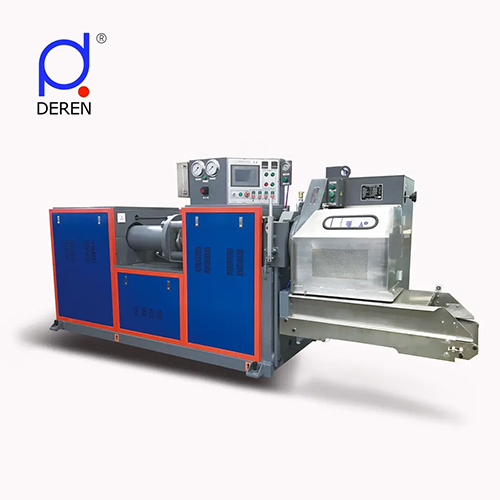

JYZ250 Barwell Rubber Precision Preformer Machine
29000.00 - 38000.00 INR/Unit
Product Details:
- Automatic Grade Automatic
- Cooling System Water Cooling
- Warranty 1 Year
- Click to View more
X
JYZ250 Barwell Rubber Precision Preformer Machine Price And Quantity
- 29000.00 - 38000.00 INR/Unit
- 1 Unit
JYZ250 Barwell Rubber Precision Preformer Machine Product Specifications
- 1 Year
- Automatic
- Water Cooling
JYZ250 Barwell Rubber Precision Preformer Machine Trade Information
- 10-15 Days
Product Description
Product details
- Place of Origin : Shanghai, China
- Type : Rubber Preformer Machine
- Condition : New
- Video outgoing-inspection : Provided
- Machinery Test Report : Provided
- Warranty of core components : 1 Year
- Core Components : PLC, Engine, Gearbox, Motor
- Warranty : 1 Year
- Key Selling Points : Automatic
- Weight (KG) : 5000 KG
- Applicable Industries : Manufacturing Plant, Machinery Repair Shops, Energy & Mining
- Showroom Location : None
- Brand Name : Deren
- Voltage : Customer Request
- Dimension(L*W*H) : 5.08*1.25*1.64
- Year : 2022
- Power (kW) : 21.6 kW
- Name : rubber precision preformer
- Operation method : Manual or PLC controlled
- Usage : Automatic
- Keywords : rubber preformer machine
- Application : Precision Preformer
- Precision Preformer : JYZ
- Advantage : Accept high-end customization
- Color : Customers' Demand
- Max. extruding pressure : 20.7Mpa
- After-sales Service Provided : Engineers available to service machinery overseas
Specification
|
Items |
Unit |
JYZ100 |
JYZ150 |
JYZ200 |
JYZ250 |
JYZ300 |
|
Barrel inside diameter |
mm |
100 |
150 |
200 |
250 |
300 |
|
Total power |
KW |
16 |
16 |
16 |
19 |
21.6 |
|
Max. extruding pressure |
MPa |
60 |
36.8 |
20.7 |
20.7 |
17 |
|
Max. barrel temperature |
C |
95 |
95 |
95 |
95 |
95 |
|
Max. die diameter |
mm |
80 |
125 |
125 |
190 |
300 |
|
Rubber weight range |
g |
0.03-100 |
0.03-200 |
0.03-300 |
0.03-6000 |
10-6000 |
|
Rubber blank weight accuracy |
% |
-/+1.0 |
-/+1.0 |
-/+1.0 |
-/+1.0 |
-/+1.0 |
|
Single feeding volume |
L |
5 |
12 |
25 |
65 |
100 |
|
Cutter speed |
r/min |
35-300 |
35-300 |
35-300 |
23-300 |
35-300 |
|
(LxWxH)External dimension |
m |
3.77x1.2x1.62 |
3.77x1.2x1.62 |
3.9x1.2x1.64 |
5.08x1.25x1.64 |
5.6x1.35x1.85 |
|
Weight |
t |
2 |
2.3 |
2.5 |
3.6 |
5.5 |
|
Balance frame |
m |
0.44*0.44*0.96 |
||||
